Auto Body Printer (Vehicle Art Robo)

Direct digital printing on truck/vehicle bodies contributes to time & cost savings compared to conventional film application

Contact Us

Overview

Film Wrapping to Direct Digital Printing

Decoration on truck bodies has generally been carried out by attaching a printed film, but our inkjet technology enables direct printing.
Printed images can also be erased, which reduces related costs, also make regular design changes possible.
We have named this initiative "Design Track (Art on Truck)" and hope contribute to municipal PR, social contribution, regional development and industry-academic collaboration.

For the latest user cases, please look for SNS with #Autobodyprinter

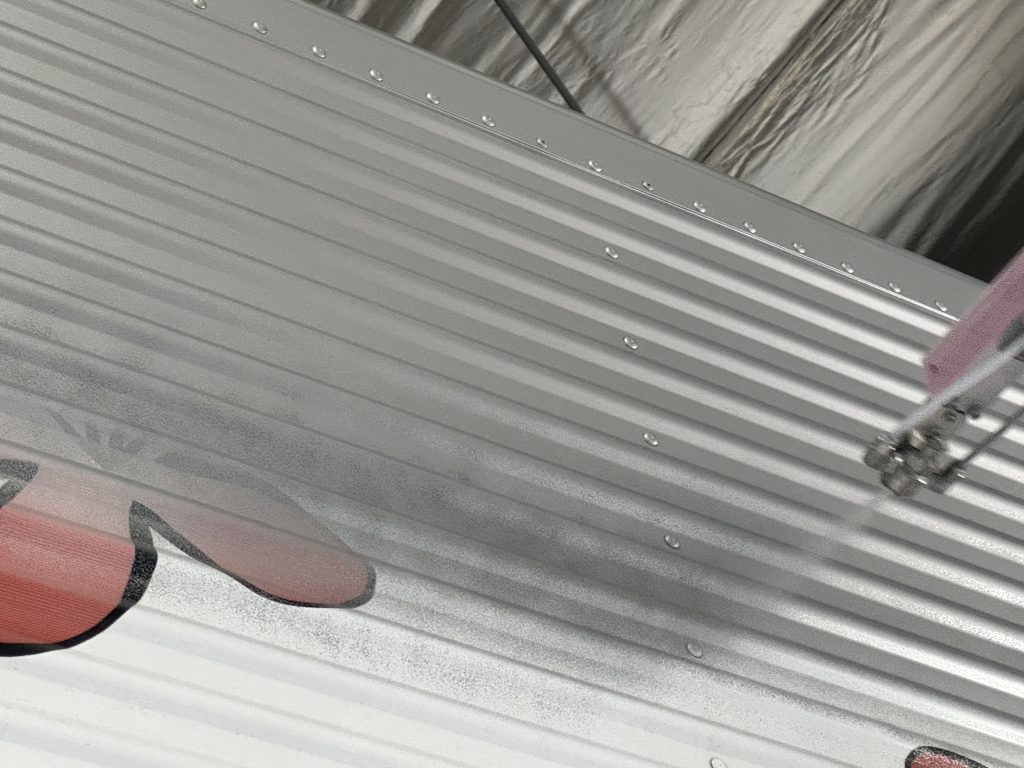

Direct Digital Printing on Corrugated Board

As the machine automatically follows the unevenness of the surface, it can be printed on curved and uneven surfaces and corrugated plates, which require high technology if in case of film application.

High Weather Resistance with Overcoating

An overcoat coating is usually applied at the same time as printing and has a weather resistance of 3 to 5 years under standard conditions.

Both "Printing" and "Painting"

As well as printing, single colour "painting" in white or silver is also available.
Unlike normal colours, the system is configured to spray a larger volume of ink at once, enabling refresh painting with high productivity.

https://www.youtube.com/watch?v=0-MEK5jFMWo&list=PLVeLbRp5JE6zvj6cZQp2SQYQI0Bi7Wo1x&index=3

Expansion Possibilities

If the distance from the print head to the surface can be guaranteed, the printing target is not limited to truck bodies. In fact, there are already other applications besides trucks, such as passenger cars, packers, buses, wall surfaces, building materials, shutters, blinds, curtains, paintings, etcetc...

Customization

Please feel free to contact us for customisation advice such as smaller size, dedicated single color painting etc.
The video shows one example for printing onto a passenger car body with the smaller system.

Specification

印刷方式
Printing Method		オブジェクトへの直接印刷方式
Direct to object printer
機器寸法
Machine Dimension		NNV-10: W11,736 x D2,570 x H4,747mm
NNV-13: W14,810 x D2,570 x H4,747mm
重量
Weight		NNV-10: 1,450 kg
NNV-13: 2,000 kg
印刷可能幅
Printable Width		NNV-10: 10 m
NNV-13: 13 m
印刷可能高さ
Printable Height		NNV-10: 670 ~ 3250 mm
NNV-13: 670 ~ 3250 mm
電圧
Electricity		AC100V, 15A
解像度
Resolution		105.8 dpi (0.24 mm pitch)
63.5 dpi (0.4 mm pitch)
印刷速度
Productivity		8 min/m2 (63.5 dpi)
インク
Ink		CMYK（シアン、マゼンタ、イエロー、ブラック）、白、クリア
CMYK (Cyan, Magenta, Yellow, Black), White and Clear
プリントヘッド
Inkjet Head		CMYK：GA5110-10、白/クリア：GA5120-10
CMYK: GA5110-10, White & Clear: GA5120-10
カラーマネジメントシステム
Color Management System		ColorGATE PRODUCTION SERVER
同梱品
included		プリンター本体、コントローラー、ソフトウェア、パソコン、コンプレッサー
Printing System, Controller, Software, Laptop and Compressor
非同梱品
NOT included		Adobe社Photoshop/Illustratorをご準備下さい
Prepare Adobe Photoshop/Illustrator by yourself

FAQ

Can the print be erased?

Yes, can be erased by wiping with solvent (acetone). After erase, you can print a new image.

How long does it take to print per truck?

Depending on the image to be printed, approximately one side of a truck body can be printed in 3-4 hours. (Excluding time spent washing the vehicle and preparing the print beforehand).

How much ink is consumed?

It depends largely on the image to be printed, but a general average is 20 ml (each colour) per square metre.

Can we print on objects other than trucks, such as vehicle bodies, walls and shutters?

If the distance from the print head to the surface can be guaranteed, the printing target is not limited to truck bodies. In fact, there are already other applications besides trucks, such as passenger cars, packers, buses, wall surfaces, building materials, shutters, blinds, curtains, paintings, etcetc...
Please feel free to contact us for customisation advice.
