Bottle Printer
Direct printing systems for various cylindrical and spherical shapes such as bottles and balls
Overview
360 degree Direct Printing
4 full colors with white and clear for vivid expression. Operation is safe, as it fixes to the material without heat.
Add Values with Variety of Ideas

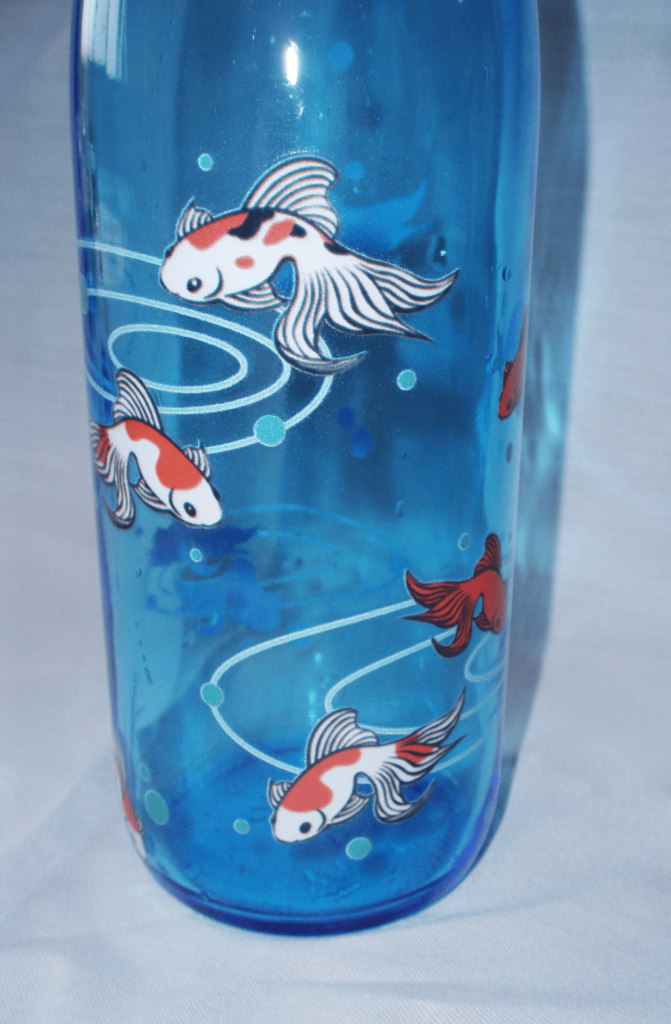

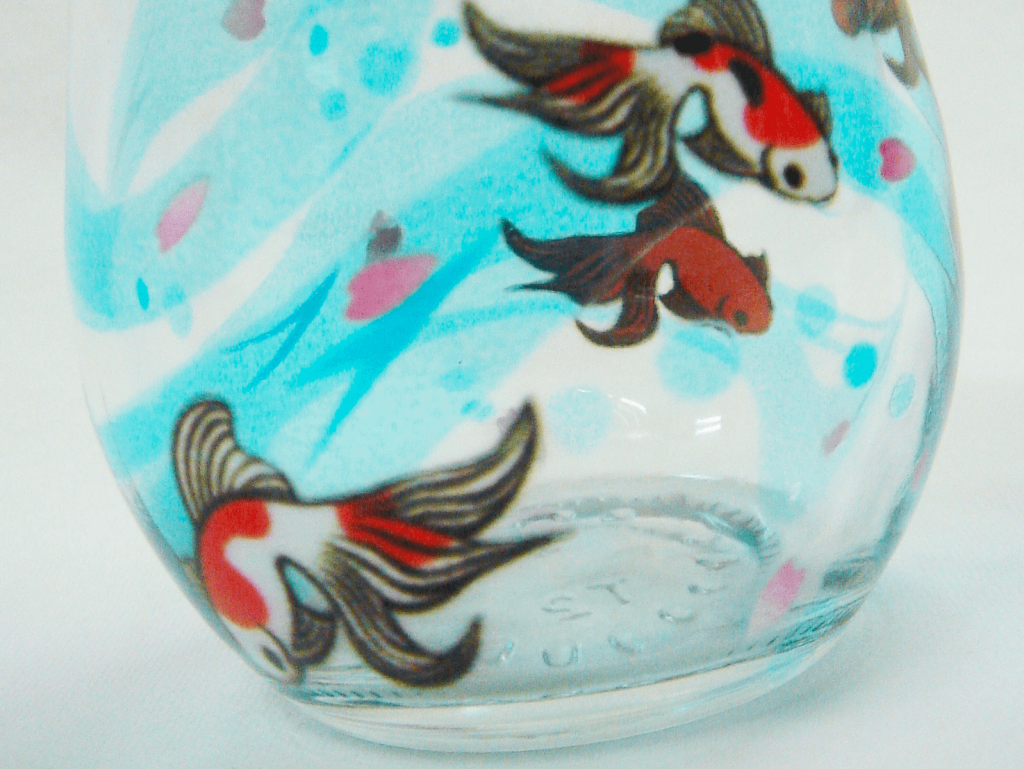

It can offer original bottles full of individuality for a wide variety of materials and shapes, including glass bottles, ceramics, and water bottles. Unlike stickers, this product offers a sense of luxury, durability, and simplification of the work process.
Specification
| 印刷方式 Printing Method | オブジェクトへの直接印刷方式 Direct to object printer |
| 機器寸法 Machine Dimension | 本体（Main Machine）：W630mm x H770mm x D540mm コントローラ（Controller Box）：W298mm x H218mm x D468mm |
| 重量 Weight | 30 kg |
| 対応ボトルサイズ Printable Bottle Size | 直径35mm ~ 150mm Diameter 35mm to 150mm |
| 印刷可能サイズ Printable Area | 0 ~ 256mm（高さ調整オプション接続時） 0 ~ 256mm (with the height adjustment option) |
| 電圧 Electricity | AC100V |
| 解像度 Resolution | 170 dpi |
| 印刷速度 Productivity | 約6分（プリント高さ65mmの時） About 6 minutes in case of 65mm height printing |
| インク Ink | CMYK（シアン、マゼンタ、イエロー、ブラック）、白、オーバーコート CMYK (Cyan, Magenta, Yellow, Black), White and Clear |
| プリントヘッド Inkjet Head | 計7本（白：2本、シアン、マゼンタ、イエロー、ブラック、オーバーコート：各1本） Total 7 nozzles (2 times of White, 1 each for Cyan, Magenta, Yellow, Black and Clear) |
| 同梱品 included | プリンター本体、コントローラー、ソフトウェア、パソコン、コンプレッサー Printing System, Controller, Software, Laptop and Compressor |
| 非同梱品 NOT included | Adobe社Photoshop/Illustratorをご準備下さい Prepare Adobe Photoshop/Illustrator by yourself |
FAQ
-
Can the print be erased?
-
If the object does not soak up ink, such as glass bottles, metal cans, ceramics, etc., it can be wiped off with a cleaning liquid.
-
What kinds of materials can it print on?
-

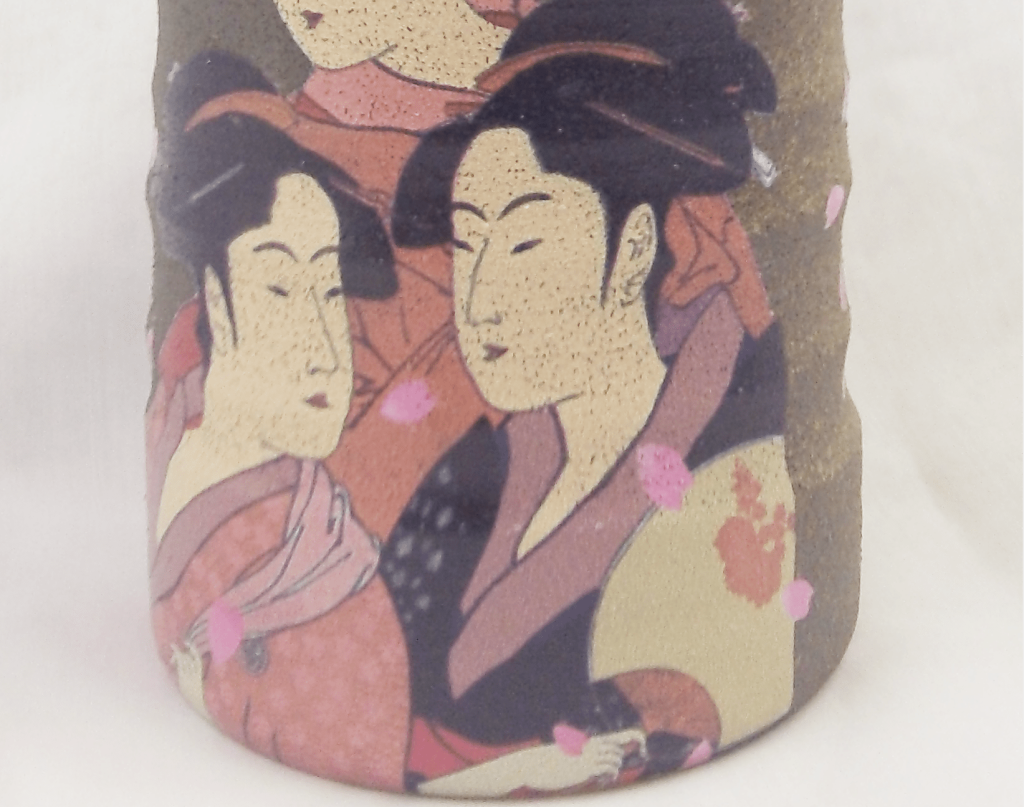

In addition to glass bottles, the print can be applied to various materials such as water bottles, metal cans, ceramics, pots, plastic, wood, balls, etc., regardless of whether the surface is uneven or not.
-
Can we print on dark-colored bottles or materials?
-
White ink is printed as a base (background) layer at the same time as the color print, making it possible to print on dark-colored materials.
Also, since the color ink is transparent, printing on transparent bottles without white ink gives a stained glass-like finish.
-
Does it affect the taste or smell of the bottle contents?
-
While printing, a weak warm air is flowed for drying, but it is not enough to heat the bottle so it does not affect the contents of the bottle.
Also once dry, the ink smell is almost gone.
-
How long does it take to dry after printing?
-
It will dry less than a minute but it is advised leaving 1 day to natural dry thoroughly.
-
How strong is the print?
-
The clear coat is printed at the same time as the color print, so after drying it will not come off even if scratched with a fingernail.
-
Can we avoid labels already on the bottle and print only in the empty space?
-
Yes, possible.
-
How difficult is it to operate?
-
In addition to providing manuals, we also do the training on machine operation at the time of product delivery, including how to create and handle print data (Adobe Photoshop).
-
Can we print on shapes other than cylinders?
-
Yes, possible. During printing, the print head and the printed surface are close to about 2 mm, so if the distance is locally far apart during rotation, the print quality in that area may be worse.
If the size (diameter) of the print head changes between the top and the bottom, it is possible to make the print head follow the printed surface by inputting size/dimension to the application in advance.
Support & Downloads
to be updated.
