Letter Robo
Automates the printing of high-pressure gas cylinders contributing to factory digitisation
Overview
High Speed Automation of Lettering Operations
Required descriptions such as filling deadline, company name, address, etc. are printed at high speed in a maximum of about 45 seconds on gas cylinder bottles.
Up to 5 colors can be selected and added from a wide variety of coating colors.

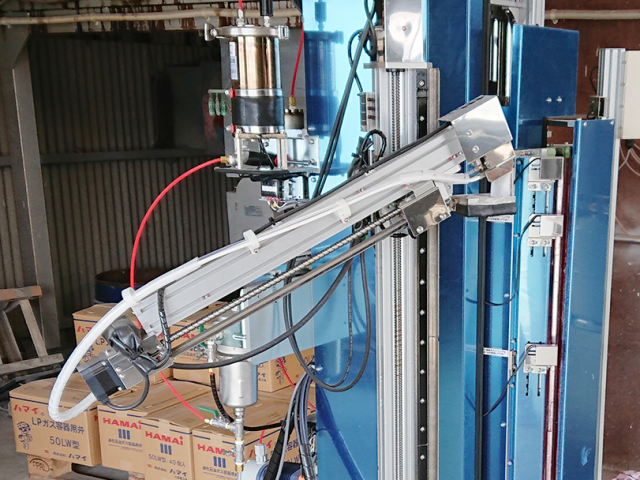

Printing on the shoulder of the cylinder is also available as an option.
![](https://www.ricoh-digitalpainting.com/en/wp-content/uploads/2024/06/pho_mv_01-e1718088261787.png)
Customization depending on Installation Environment

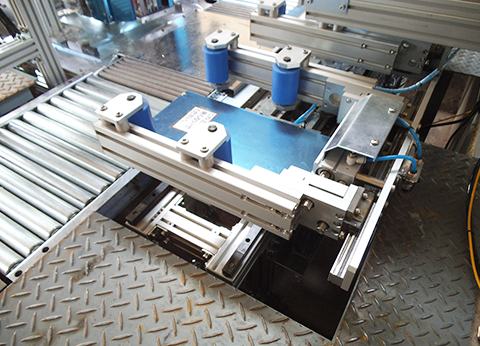

We offer a variety of models from fully-automatic types that automatically convey cylinders to the printing position with rollers and belt conveyors, to semi-automatic, manual, and seamless dedicated types that eliminate configuration and space requirements.
Please feel free to contact us for the model that best suits your business environment.
Specification
![](https://www.ricoh-digitalpainting.com/en/wp-content/uploads/2024/05/letter-robo.png)
Varies depending on the customization type. Please contact us for details.
印刷方式 Printing Method | オブジェクトへの直接印刷方式 Direct Lettering to Rotating GAS Cylinder |
印刷可能縦幅 Printable Vertical Width | 780mm |
印刷可能高さ Printable Height | 150 ~ 1126mm |
印刷可能容器 Printable Cylinder Size | LP容器:50㎏、40㎏、30㎏、20㎏、15㎏、10㎏、8㎏、5㎏(10㎏以下は専用台使用) シームレス容器:47L、40L、27L、20L、13L、10L、6.7L,3.4L、2.1L(6.7L以下は専用台使用及び3色対応) |
電圧 Electricity | AC100V(本体)、AC200V(ヒーター) AC100V (Main Machine), 200V (Heater) |
解像度 Resolution | 31.75 dpi (0.8mm pitch) |
印刷速度 Productivity | 1本あたり45秒(フルオートシステムの場合) 45 seconds/cylinder (Full Automatic System) |
色数 Number of Colors | ノズル5本(5色)+色切替器5色(合計10色) 5 nozzles (5 colors) + color exchange option (5 colors) = total 10 colors |
プリントヘッド Inkjet Head | ボンベ胴部:40本ノズル/色 ~ 200本ノズル/5色 ボンベ肩部:3本ノズル/色 ~ 7本ノズル/2色 Cylinder Body Part: 40 nozzles / color up to 200 nozzles / 5 colors Cylinder Shoulder Part: 3 nozzle / color up to 7 nozzles / 2 colors |
同梱品 included | プリンター本体、コントローラー、ソフトウェア Printing System, Controller, Software |
非同梱品 NOT included | Adobe社Photoshop/Illustratorをご準備下さい Prepare Adobe Photoshop/Illustrator by yourself |
FAQ
-
Can the print be erased?
-
It can be wiped off with solvent (acetone). New printing can be applied after erasing.
-
How much ink splatter is there compared to hand spraying?
-
Letter Robo can make 95% ink coverage rate.
With manual spraying, it is said the ink coverage is only about 30%, which improves the health of the workers and the environment of the facility.
-
Is it possible to print something other than text?
-
Yes, marks (single color) can be printed since the printing data is created in Photoshop.
-
What is the status of installations in Japan?
-
We have delivered and operated about 120 units nationwide.
