Tire Printer LTP-10/LTP-11
Decorate tyres and wheels to create a unique design
Overview

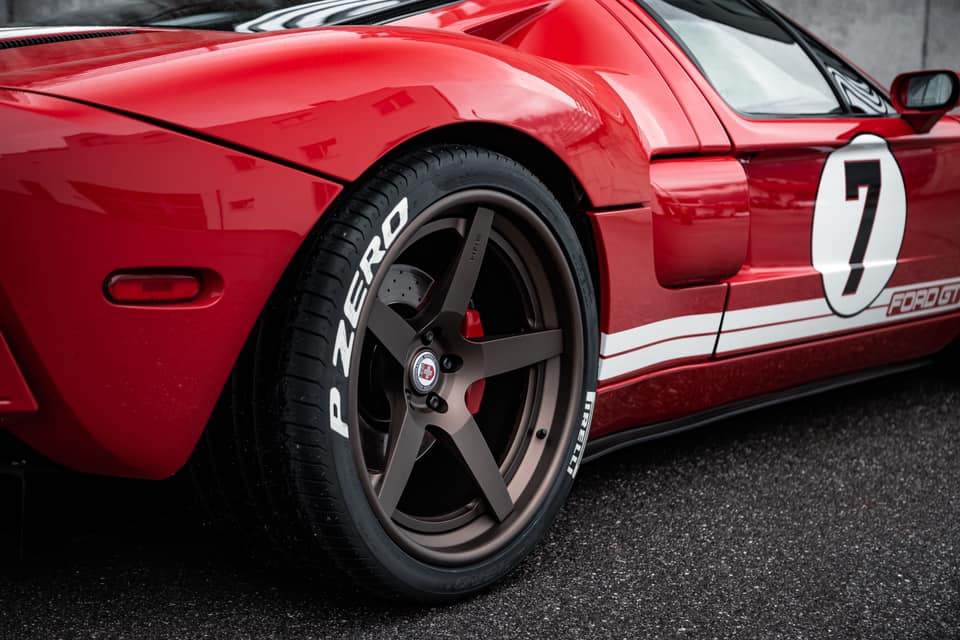

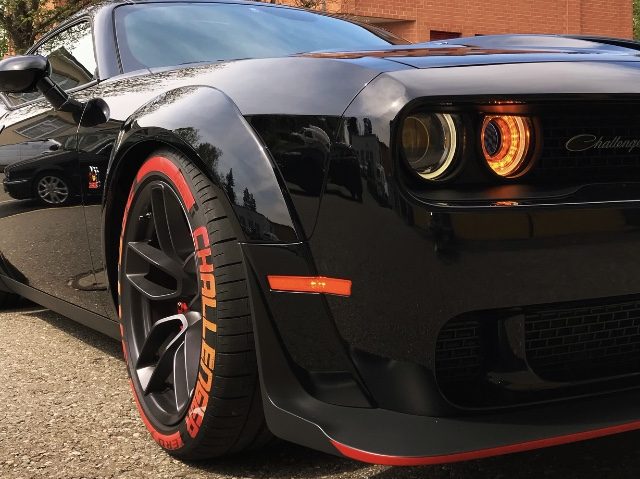

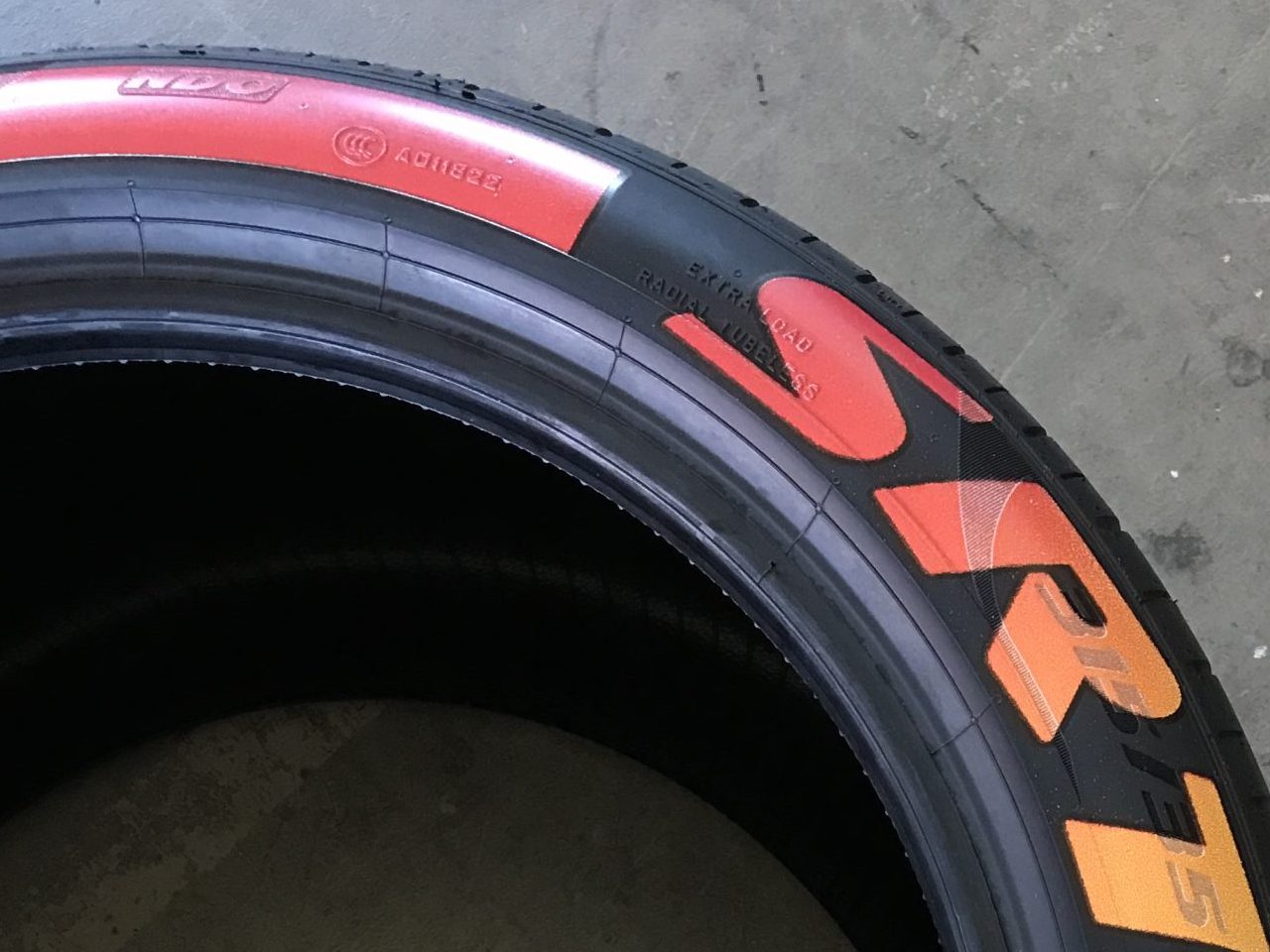

Direct Print to Tire Sidewall
It prints not only text, but also complex illustrations and patterns on tires, using the same principles as a standard home printer. Each tyre can be printed in approximately 5 to 10 minutes and at low cost.
Source: Baumgartner Trading AG
High Durability with Water-Based Ink
It uses a water-based resin ink developed by us that is more environmentally friendly and safer to use.
It has passed our internal standard tests for fixation on tire surfaces, flexibility and colouration, and has a print durability of approximately 1 year under standard conditions.
![](https://www.ricoh-digitalpainting.com/en/wp-content/uploads/2024/06/videoframe_229930-e1718597977212.png)
Also Available in Truck/Trailer Sizes
In addition to standard passenger car tires, the lineup includes models for large trailer tires as well.
For passenger car tires: 330 - 850 mm in diameter
For trailer tires: 570 - 1100 mm in diameter
![](https://www.ricoh-digitalpainting.com/en/wp-content/uploads/2024/05/tire-printer.png)
Specification
![](https://www.ricoh-digitalpainting.com/en/wp-content/uploads/2024/07/dimension_tire-printer.png)
印刷方式 Printing Method | 回転体への直接印刷方式 Direct to rotating object printer |
機器寸法 Machine Dimension | 標準サイズ For Nomal Vehicle Tires: W1800mm x D860mm x H1020mm 大サイズ For Bigger Tires: W2100mm x D1150mm x H1080mm |
重量 Weight | 標準サイズ For Nomal Vehicle Tires: 76.4 kg 大サイズ For Bigger Tires: 77.4 kg |
印刷可能サイズ Printable Size | 標準サイズ For Nomal Vehicle Tires: Diameter 330 ~ 850mm 大サイズ For Bigger Tires: Diameter 570 ~ 1100mm |
印刷可能厚さ Printable Thickness | 145 ~ 350mm |
電圧 Electricity | AC100 ~ 240V |
解像度 Resolution | 63.5 dpi (0.4 mm pitch) |
印刷速度 Productivity | 通常、タイヤ1本あたり10分以下 Normally Less than 10 minutes/tire |
インク Ink | CMYK(シアン、マゼンタ、イエロー、ブラック)、白、プライマー CMYK (Cyan, Magenta, Yellow, Black), White and Primer |
プリントヘッド Inkjet Head | CMYK:GA1120-10、白/プライマー:GA1122-10 CMYK: GA1120-10, White & Primer: GA1122-10 |
カラーマネジメントシステム Color Management System | コントローラーに含まれます Included in the Controller |
同梱品 included | プリンター本体、コントローラー、ソフトウェア Printing System, Controller, Software |
非同梱品 NOT included | Adobe社Photoshop/Illustrator、コンプレッサー、ヒーターをご準備下さい Prepare Adobe Photoshop/Illustrator, Compressor and Heater by yourself |
FAQ
-
Can the print be erased?
-
Yes, it can be removed with a special cleaning liquid.
-
Will the print fall off after washing the car?
-
Unless brushed strongly, it will not peel off or deteriorate in quality.
-
How much can we print per ink bottle?
-
Although it largely depends on the print design, an average of 20 to 30 bottles of ink per bottle (approx. 90 mL) is a rough reference.
White and primer are used for the base layer, so they consume more than colored (CMYK).
-
What kind of images can be printed?
-
For fonts, we recommend a minimum size of 60 pt, as smaller sizes will be crushed.
Also, for areas where multiple colors are layered, it is recommended that the total number of colors not exceed 200 to ensure high quality prints.
We will provide more detailed lecture at the timing of installation & training the system.
-

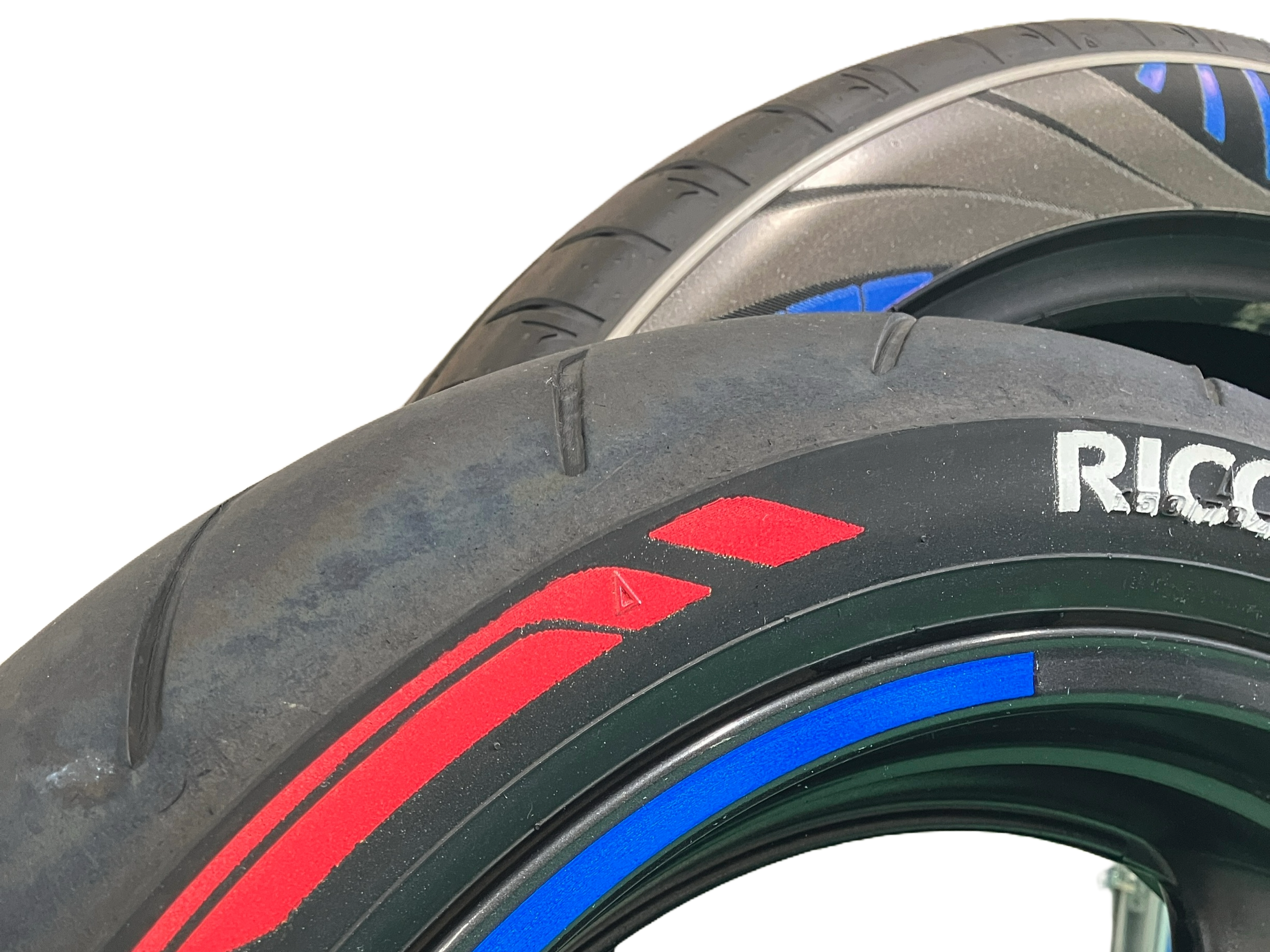

Can I actually see printed samples?
-
We can provide a demonstration at our company (Tokyo), or can make print samples for a fee. Please contact us for details.
